Nos. of Threads / Range – Metric (Without Norton Gearbox)
17 / 0.5 mm to ... (pitch)
17 / 0.5 mm to ... (pitch)
17 / 0.5 mm to ... (pitch)
Nos. of Threads / Range – Inch (Fully Norton Gearbox)
40 / 2 to 60 TPI
40 / 2 to 60 TPI
40 / 2 to 60 TPI
Feeds & Other Details
Specification
FLG-L165
FLG-M215
FLG-M250
Nos. of Feeds / Range (Longitudinal – Fully Norton Gearbox)
Nos. of Feeds / Range (Cross – Fully Norton Gearbox)
Floor Space Occupied (mm)
1500×850 / 1750×850 / 2200×850
1650×970 / 1950×970 / 2100×970
2000×900 mm (approx.)
Approx. Net Weight (kg)
—
—
875
Approx. Case Dimension (mm)
2400×950×1300 / 2800×950×1300 / 3200×950×1300
2500×1000×1330 / 3200×1000×1330
2100×1000×1330
Electrical
Electric Motor of 1 H.P / 0.75 kW, 3 Phase, 50 Hz, 440 V, 1140 RPM with
Reverse–Forward switch, V-Belt, Electrical Wiring & Fittings.

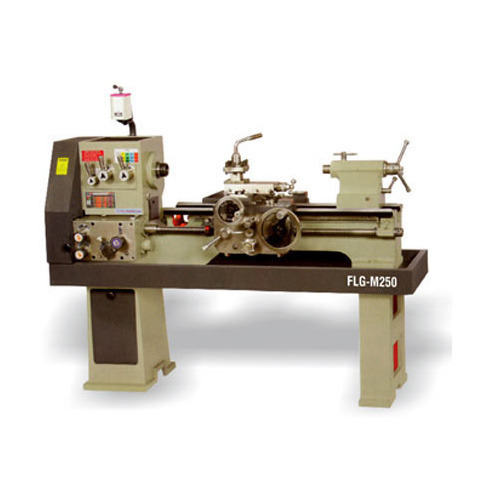

Medium duty all geared lathe machines are robust and versatile tools designed for turning, facing, threading, and other machining operations on medium to large-sized workpieces. Equipped with a gearbox-driven spindle system, these machines offer precise speed control and ample power for heavy-duty machining tasks. They are suitable for workshops, manufacturing facilities, and educational institutions where precision and productivity are paramount.
Key Features of Medium Duty All Geared Lathe Machines:
Robust Construction: Built with a sturdy bed, headstock, and tailstock assembly to withstand heavy cutting forces and vibrations during machining operations.
All Geared Headstock: Utilizes a gearbox-driven spindle mechanism for precise speed control and increased torque output, enhancing machining performance and versatility.
Variable Speed Control: Offers multiple speed ranges to accommodate various cutting operations and workpiece materials, allowing for optimal machining performance.
Precision Machining Capabilities: Provides accurate and consistent results with precise control over cutting parameters such as feed rate, depth of cut, and spindle speed.
User-Friendly Controls: Intuitive control panel or manual handwheels for adjusting spindle speed, feed rate, and other machining parameters, ensuring ease of operation.
Tailstock with Quill: Provides additional support for long workpieces and enables drilling, reaming, and tapping operations with precision and reliability.
Safety Features: Incorporates built-in safety mechanisms such as emergency stop buttons and spindle brake for operator protection and machine safety.
Applications of Medium Duty All Geared Lathe Machines:
General Machining: Turning, facing, threading, and grooving of cylindrical and conical workpieces for various industries including automotive, aerospace, and machinery.
Tool and Die Making: Manufacturing precision components such as molds, dies, and tooling inserts with tight tolerances and fine surface finishes.
Prototyping: Producing prototypes and small-batch production runs of custom-designed parts and products for research and development purposes.
Educational Training: Providing hands-on learning experiences for students and apprentices to develop machining skills and understand lathe operations.
Maintenance and Repair: Performing repairs, modifications, and refurbishments on existing parts and equipment in industrial and manufacturing settings.
Advantages of Medium Duty All Geared Lathe Machines:
Strength and Durability: Designed to withstand heavy cutting forces and prolonged use in demanding industrial environments, ensuring long-term reliability and performance.
High Productivity: Offers high-speed cutting capabilities and rapid tool changes, resulting in increased throughput and reduced machining cycle times.
Precision: Provides exceptional accuracy and surface finish in machining operations, meeting the most stringent quality standards for critical components.
Versatility: Capable of handling a wide range of turning and machining tasks on medium to large-sized workpieces, eliminating the need for multiple machines and setups.
Cost-effectiveness: Provides a cost-efficient solution for medium-duty machining applications, delivering superior performance and productivity compared to alternative methods.
