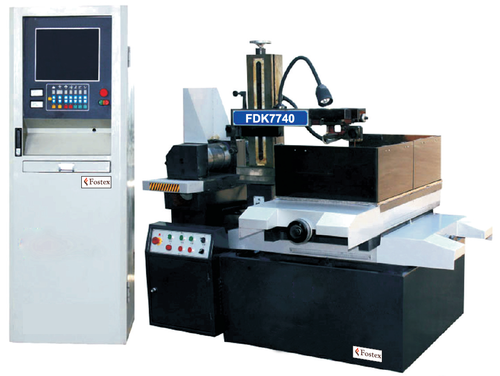

CNC Wire Cut Machine Fdk Series

Home / Products / CNC Wire Cut EDM Machine

CNC Wire Cut Machine
Fdk Series

Price : INR. Rs 8.5 Lakh (All Tax Inclusive)

Features:

Lowest Running Cost.

Reusable Malybdenum wire.

Multi pass facility (optional).

It can make option of High speed and Medium speed.

High accuracy and fine surface quality cab be while machining speed in high.

Coolant oil is used as dieletric / Low cost soap gel can be used as cutting oil.

Maximum cutting speed : 180mm2/min.

Low cost.

Low Maintenance.

Function of taper processing.

Functions of interpolation of straight line and circular arc.

Automatic centre find, edge find operation and pulse at wire break.

Function of memorizing when power was cut and auto-stop after processing.

Auto lock after giving run command.

Good rigidity, running placidly, strong function, convenient and reliable operation.

FDK Series

Model	FDK-7725	FDK-7735	FDK-7745	FDK-7755	FDK-7763
Table size (mm)	560x400	710x480	810x570	950x650	1140x750
Table travel (X-Y) (mm)	320x250	450x350	550x450	630x550	800x630
Max Z axis travel (mm)	350	450	550	550	650
Max. workpiece weight (kg)	300	400	600	800	1600
Max. cutting angle (Optional)	±3°	±3°(15°)	±3°(15°,30°)	±3°(15°,30°)	±3°(15°,30°)
Cutting Accuracy	Cr12 40mm/10mm/10mm (Squares) 0.015-0.025mm
Wire moving speed (m/s)	11.5
Cutting speed (mm²/min)	Standard (120-140); max. cutting speed 160-180
Power	Single phase, 220V/50Hz / Three phase, 415V/50Hz (2.0kw)
Best Finish (Ra)	Single Cutting ≤ 2.5
Multi Cutting ≤ 1.5
Wire Diameter (mm)	(0.12 - 0.25)
Dimension (LxWxH) (mm)	1400x900x1500	1400x1100x1600	1600x1200x1700	1900x1500x1800	2100x1700x1900

Model

FDK-7725

FDK-7735

FDK-7745

FDK-7755

FDK-7763

Table size (mm)

560x400

710x480

810x570

950x650

1140x750

Table travel (X-Y) (mm)

320x250

450x350

550x450

630x550

800x630

Max Z axis travel (mm)

350

450

550

650

Max. workpiece weight (kg)

300

400

600

800

1600

Max. cutting angle (Optional)

±3°

±3°(15°)

±3°(15°,30°)

Cutting Accuracy

Cr12 40mm/10mm/10mm (Squares) 0.015-0.025mm

Wire moving speed (m/s)

11.5

Cutting speed (mm²/min)

Standard (120-140); max. cutting speed 160-180

Power

Single phase, 220V/50Hz / Three phase, 415V/50Hz (2.0kw)

Best Finish (Ra)

Single Cutting ≤ 2.5

Multi Cutting ≤ 1.5

Wire Diameter (mm)

(0.12 - 0.25)

Dimension (LxWxH) (mm)

1400x900x1500

1400x1100x1600

1600x1200x1700

1900x1500x1800

2100x1700x1900
